Shed Solutions

The shed windows manufactured by TECNIPLAST differ from others. They are made out of cellular PVC and are designed specifically for the shed market. They are available in different colors; no need for them to be sent to the factory and be painted. They can easily be manufactured using only an angle saw and a bottle of liquid weld for assembly.

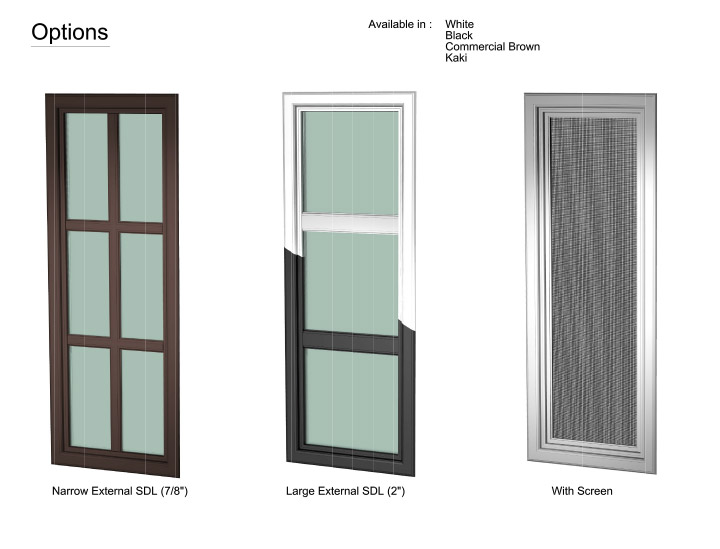

This product has an incorporated brick mold and is made for a single pane glass. If you would like to use this same product to make a screen porch enclosure, it offers the possibility of inserting a screen instead of a glass pane.

• Products
• Description
• Options
• Assembly
• Documents

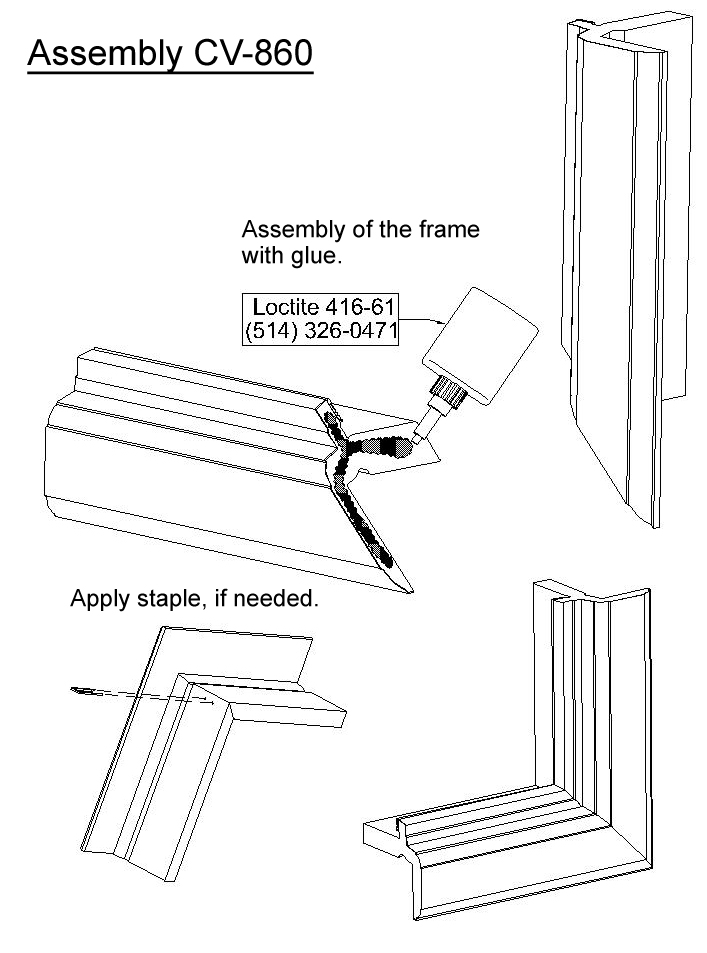

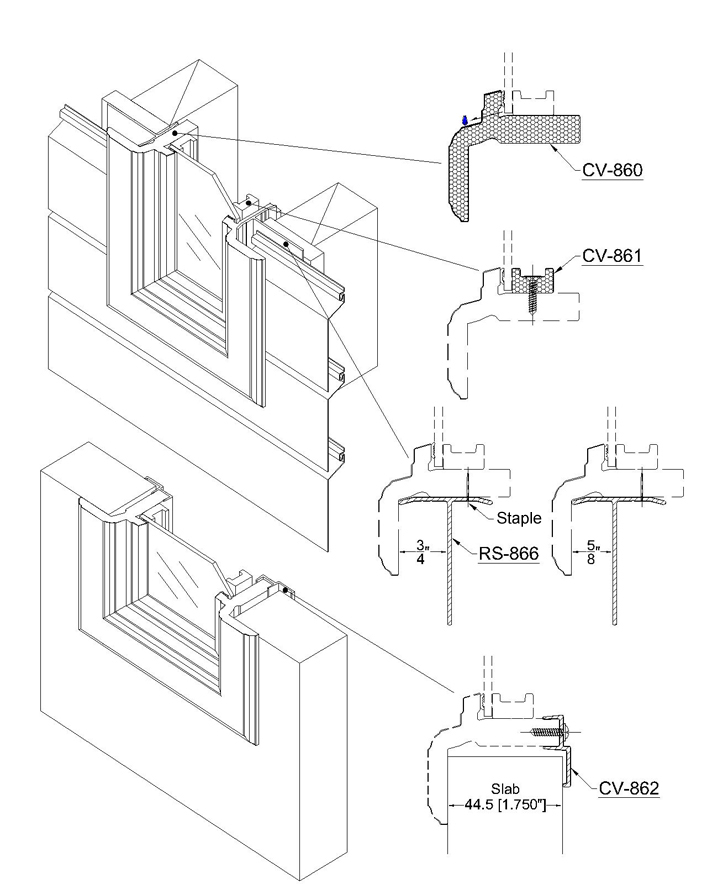

CV-860
Description:	Frame

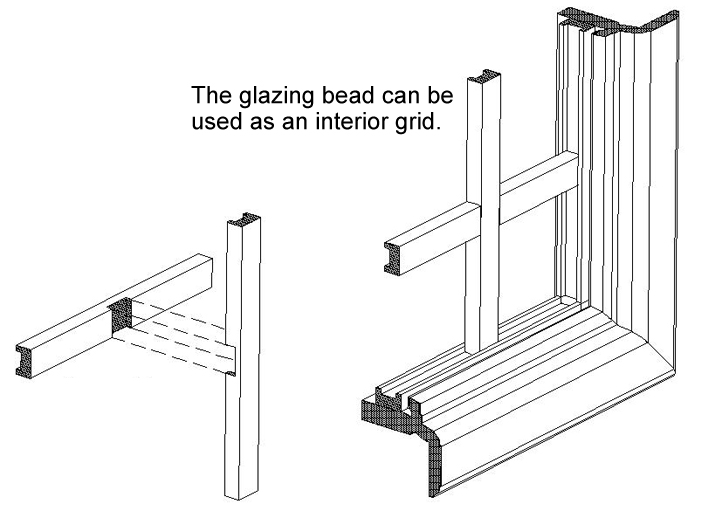

CV-861
Description:	Glazing bead

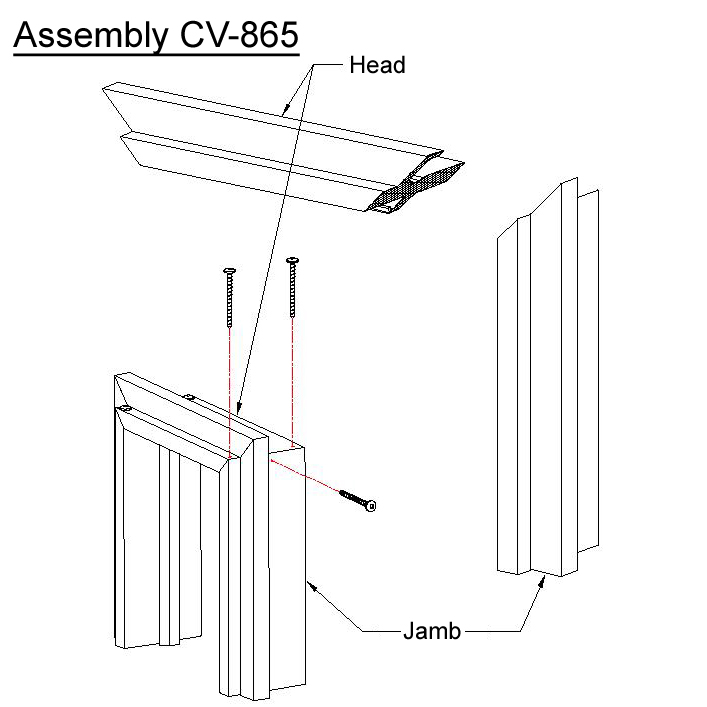

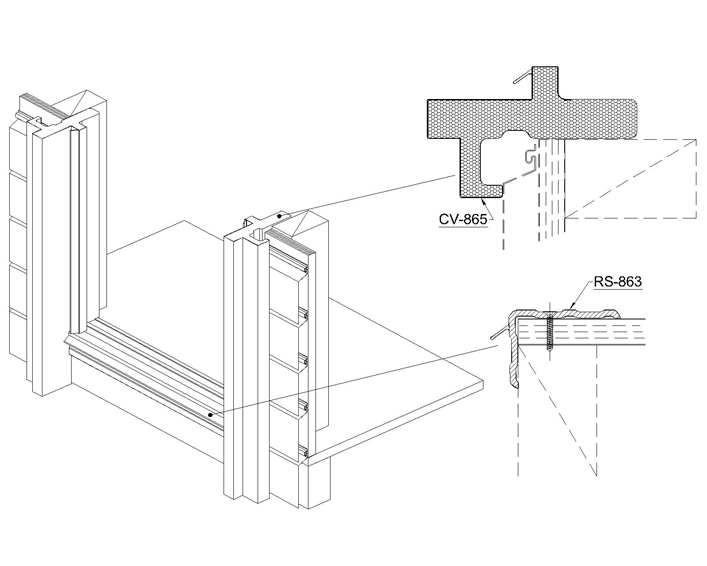

CV-865
Description:	Door Frame
RS-163
Description:	SDL Flat
RS-862
Description:	Door Lite Interior Finishing Trim
RS-863
Description:	Door Sill
RS-866
Description:	Nailing Fin for Window Frame
CV-266
Description:	SDL Colonial

Description Width x Height	Product	Colors	Packaging Pcs. Lenght Feet              Format	Stock
2" Frame	CV860RF	10-16-40-50	14 144" 168'  FF 6 x 6
5/8" x 3/8" Glazing bead	CV861	10	28 144" 336'         Bag
4" Door Frame	CV0865RF	10-16-40-50	4 144" 48'         Box
7/8" x 1/16" SDL Flat	RS163	10-16-40-50	48   96" 336' Box 3 x 3
Door Lite Interior Finishing Trim	RS0862	10	25   96" 200' Box 3 x 3
Door Sill	RS0863	30	16   96" 128' FF 6 x 6
Nailing Fin for Window Frame	RS0866	N/A	28   144" 336' FF 6 x 6
2" x 1/4" SDL Colonial	CV0266R	10-16-40-50	15   96" 120'  FF 6 x 6

Color codes: 10 = White-blue, 16 = Khaki, 30 = Gray, 40 = Commercial brown, 50 = Black

Coming soon
